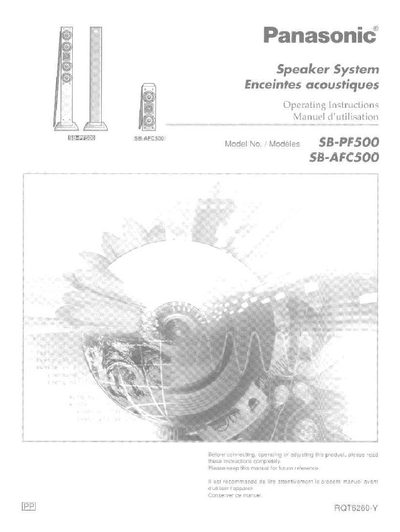

Panasonic SB-PF500/SB-AFC500 Floor and Multi-Use Speaker Operating Instructions

About this manual

This manual provides operating instructions for the Panasonic SB-PF500 floor speakers (pair) and the SB-AFC500 multi-use speaker. It details how to identify components, attach rubber feet or wall mounts, and position the speakers for optimal sound performance.

The document also covers electrical connections, specifying that an amplifier with 6 ohms impedance is required. It includes safety warnings regarding sharp edges, proper cable stripping, and correct polarity when connecting positive and negative wires.

What's inside

• Care
• Speaker set-up
• Installation des enceintes
• Attaching the speaker to the wall
• Positioning for best effect
• Connecting the cables

Frequently asked questions

What amplifier impedance is required for these speakers?

You must use an amplifier having 6 ohms impedance.

How far should the speakers be placed from the wall?

Place the speakers at least 5 cm (2 inches) from the wall.

What is the recommended screw length for wall mounting?

Use screws that are 35 mm (1-3/8 inches) or longer.
