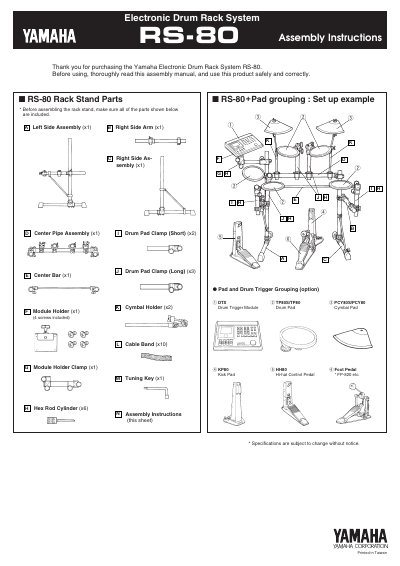

This document is the assembly manual of Yamaha Electronic Drum Rack System RS-80.
This document provides assembly instructions for the Yamaha RS-80 Electronic Drum Rack System. It begins by listing the included parts, such as left and right side assemblies, center bars, drum pad clamps of varying lengths, cymbal holders, and module holders.
The guide details the step-by-step process to assemble the rack stand, including inserting pipes into arms and attaching a central pipe. It further instructs on mounting the DTX module holder and attaching drum pads and cymbal holders at specific positions like snare, floor tom, hi-hat, and toms.
| Product Name | Electronic Drum Rack System RS-80 |
|---|
A screw driver with either a plus or minus head is necessary to finish the assembly.
The parts list includes six Hex Rod Cylinders.
The Drum Pad Clamps (Long) should be attached to the hi-hat and tom tom positions.
