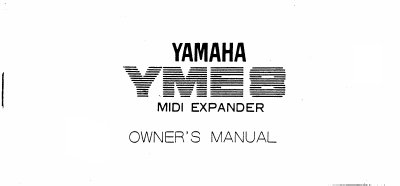

Yamaha YME8 MIDI Expander Owner's Manual

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 6
File format: PDF
File size: 168 KB
Published: 03 July, 2012
Updated: 03 July, 2012
MD5 checksum: 247A251D2A70931068B93BE247616B91
PDF: Yamaha YME8 MIDI Expander Owner's Manual PDF

About this manual

The Yamaha YME8 is a parallel box designed specifically for digital interfacing. It allows a single keyboard or sequencer to control multiple keyboards connected to MIDI THRU ports. The unit features two input selectors and two MIDI IN ports to manage different signal combinations.

What's inside

Specifications
Usage
Selector Switches
MIDI Connections
Power Supply
Caution

Specifications

MIDI IN	2
MIDI THRU	2 lines of 4
Selector Switches	Input Selectors (2)
Power	External DC 6・12V 100mA
Dimensions	164mm x 30mm x 72mm
Weight	503g

Frequently asked questions

What type of AC adapter should be used with the YME8?

If using an adapter other than the provided PA-1, it must be DC 6-12V.

How many keyboards can be controlled by one sequencer?

Up to eight keyboards can be connected to the MIDI THRU ports.
