This is an expansion board for expanding mLAN devices. It contains 8 mLAN ports and can expand network coverage.
The Yamaha mLAN8E is an expansion board that provides an mLAN interface and mixer functionality to music production systems. It utilizes the IEEE 1394 high-performance serial bus to construct sophisticated networks for audio and MIDI signals without requiring complex cabling reconfiguration.

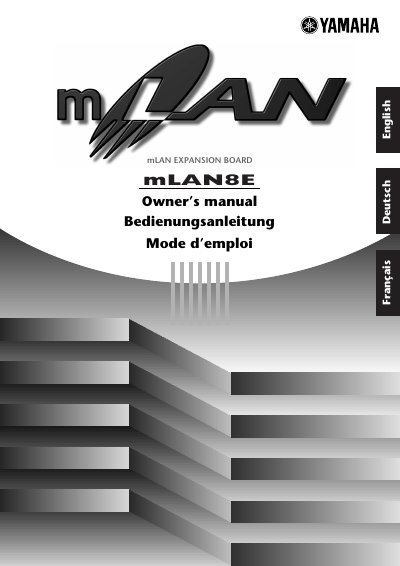

The manual details how to install the unit, connect it to other devices or computers via serial or FireWire cables, and operate its built-in features. Key functionalities include a 16-channel digital audio mixer with equalizer and dynamics processor capabilities, controlled via included software applications like mLAN Mixer.
| Digital Audio Input/Output (Direct Mode) | 8in/8out |
|---|---|
| MIDI Input/Output | 1in/1out |
| Data Rate | $200 |
| Power consumption | 4 W |
The mLAN8E is an expansion board that provides an mLAN interface and mixer functionality for music production systems.
Installation must be performed by qualified Yamaha service personnel or authorized Yamaha dealers.
