This document is about the operating instructions of the AV control receiver, model SA-HE75. The document provides important safety instructions, equipment connections, audio settings, basic operations, other settings, recording operations, etc.

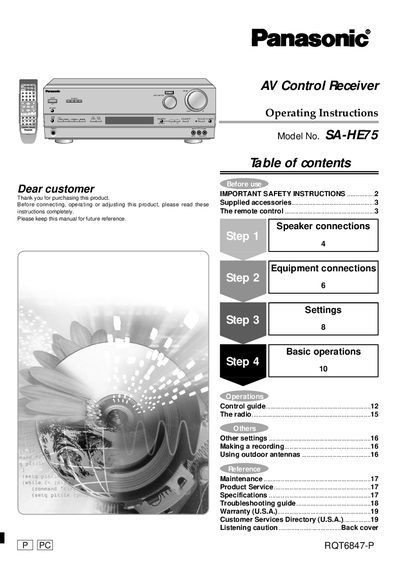

This manual provides operating instructions for the Panasonic SA-HE75 AV Control Receiver. It includes safety information, a list of supplied accessories such as antennas and batteries, and guidance on remote control usage.
The document details how to place speakers correctly, connect peripheral equipment like TVs and DVD players via analog or digital inputs, and configure settings for audio sources including Dolby Digital and DTS.
The remote control signal sensor operates up to a distance of 7 meters (23 feet).
The front, center, and surround speakers must have an impedance of 6-8 ohms.
The unit should not be situated where temperatures fall below 5°C (41°F) or rise above 35°C (95°F).
