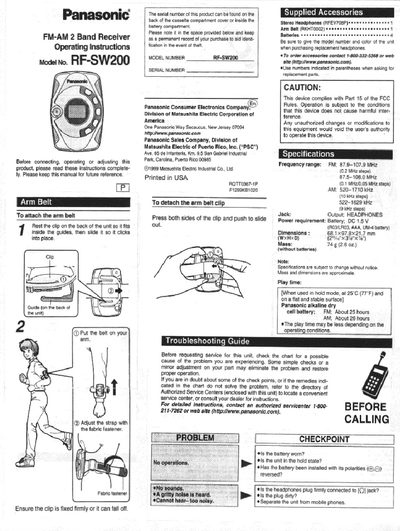

This manual provides operating instructions for the Panasonic RF-SW200, a portable two-band (FM-AM) receiver. It details how to attach the arm belt, install batteries, connect headphones, and operate the volume and tuning controls. The device features preset memory for up to 10 stations across both bands.
| Frequency range (FM) | 87.9-107.9 MHz, 87.5-106.0 MHz |
|---|---|
| Frequency range (AM) | 520-1710 kHz, 522-1629 kHz |
| Power requirement | DC 1.5 V (AAA/UM-3 batteries) |
A total of 20 stations can be stored, with up to 5 for FM and 5 for AM in each mode.
Approximately 25 hours for FM and 26 hours for AM when used in hold mode.
No, it is splashproof but not designed to be used under water.
