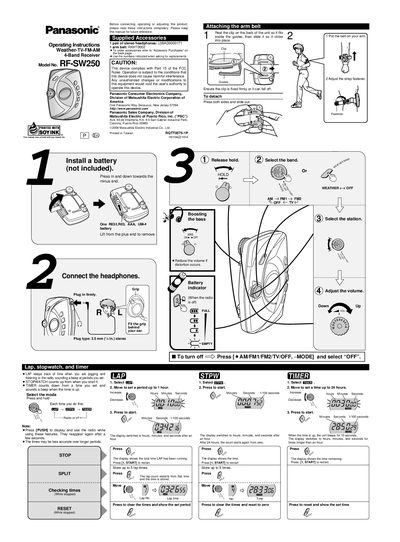

This document is an operating instruction for the Panasonic RF-SW250 4-Band Receiver, which includes weather, TV, FM, and AM functions. The document provides instructions for connecting, operating, and adjusting the product, as well as information about accessories and their usage. The product features FM tuning, weather band, and stereo headphones.
This document provides operating instructions for the Panasonic RF-SW250, a multi-function receiver combining weather band alerts, television reception, and standard AM/FM radio capabilities. The device includes a built-in stopwatch, lap timer, and alarm timer to assist with timekeeping activities.
The manual details how to install batteries, operate the various tuning modes, use preset memory functions, and adjust settings for optimal reception. It also covers safety precautions regarding battery usage, water resistance limits, and proper maintenance of the unit.
| Frequency range: Weather | 1-7CH |
|---|---|
| Frequency range: TV | 2-13CH |
| Frequency range: FM (0.2-MHz steps) | 87.9-107.9 MHz |
| Frequency range: FM (0.1-MHz steps) | 87.5-108.0 MHz |
| Frequency range: AM | 520-1710 kHz |
| Power requirement | Battery; DC 1.5 V (RO3/LRO3, AAA, UM-4) |
| Dimensions | 68.0x98.0x25.0 mm (2.7"x3.9"x1") |
| Mass | 80 g (2.8 oz) without battery |
Approximate play times are 20 hours for Weather/TV, 23 hours for FM, and 26 hours for AM.
The unit allows storing up to 25 stations: 5 each in AM, FM1, FM2, TV, and WEATHER.
No, it is splashproof but not designed to be used under water.
