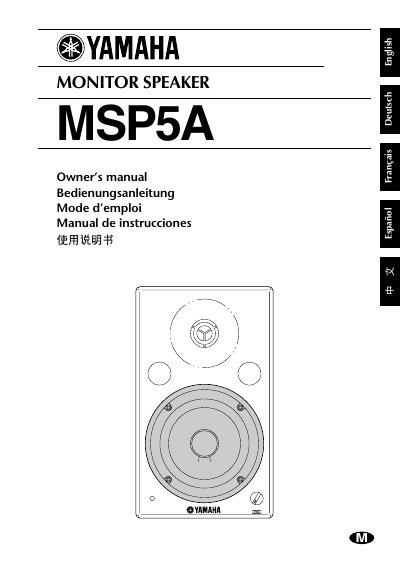

This document is a user manual for MSP5A monitor speaker. It mainly introduces the use method, safety warnings, maintenance and maintenance of the speaker.
The Yamaha MSP5A is a compact bass reflex cabinet featuring a 12 cm two-way cone speaker and a 2.5 cm titanium dome speaker. It is a powered bi-amplifier speaker system designed to faithfully reproduce sound for applications ranging from personal home recordings to serious professional use.
The document outlines important safety instructions, including warnings about electric shock, proper ventilation requirements, and handling precautions. It also details the XLR connector wiring standards and provides guidance on installation and maintenance.
| Speaker Configuration | 12 cm two-way cone speaker and 2.5 cm titanium dome speaker |
|---|---|
| System Type | Powered bi-amplifier speaker system |
| Cabinet Type | Compact bass reflex cabinet |
Pin 1 is ground, pin 2 is hot (+), and pin 3 is cold (-).
There must be at least 5 cm at the sides, 10 cm behind, and 10 cm above the device.
Yes, air blowing out of the bass reflex ports is normal, especially when handling program material with heavy bass content.
