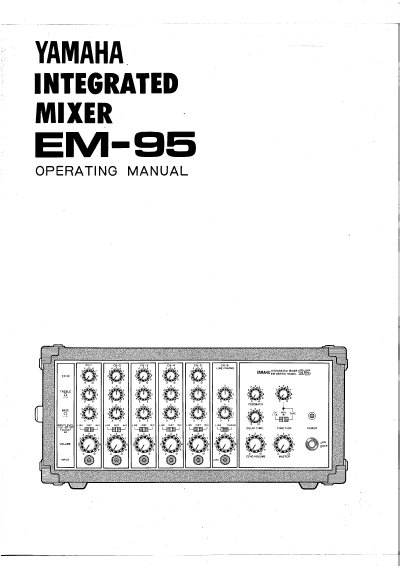

This document is the operating manual for the Yamaha EM-95 Integrated Mixer. It provides instructions on using the front and rear panels, including input selectors, volume controls, equalization, and the built-in analog delay line.
The guide details how to connect various audio sources such as microphones, instruments, turntables, and tape decks. It also explains the function of the master volume, echo effects, and output jacks for speakers and recording devices.
| Maximum Output Power (4 ohms) | 100 watts continuous average sine wave (RMS) |
|---|---|
| Maximum Output Power (8 ohms) | 65 watts continuous average sine wave (RMS) |
| Frequency Response | +1dB, 30 Hz to 10 kHz or +1, 3dB, 20 Hz to 20 kHz |
| Delay Time Range | 70 to 195 milliseconds |
| Dimensions (US & Canadian models) | 500mm W x 225mm D x 252mm H |
| Weight (US & Canadian models) | 13 kg (29 pounds) |
The delay time can be continuously varied from 70 to 195 milliseconds.
Yes, but the unit is monaural, so even if a stereo source is used, the output will be in mono.
