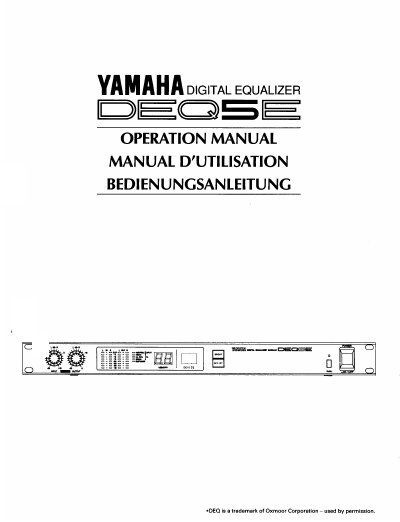

Yamaha DEQ5E Digital Equalizer Operation Manual

About this manual

The Yamaha DEQ5E is a digital equalizer featuring two main modes: a 30-band graphic equalizer (GEQ) and a 6-band parametric equalizer (PEQ). It is designed for professional audio applications and offers high performance with 19-bit A/D and 20-bit D/A conversion. The unit includes built-in digital delay and a hum filter to ensure high-quality sound reproduction.

What's inside

• Before Use
• Local Address Setting
• Digital Audio Input Signal
• Front Panel
• Rear Panel
• Memory Configuration
• Equalizer Modes
• Utility
• Remote Control by DEQ5
• Control by a Computer

Specifications

Frequently asked questions

How many programs can be stored in user memory?

Up to 40 programs of created equalizer data can be stored in the user memory.

Can the unit be controlled by a personal computer?

Yes, parameters can be controlled on a personal computer by connecting the DEQ5E to a PC with an RS-485 interface and using control software.
