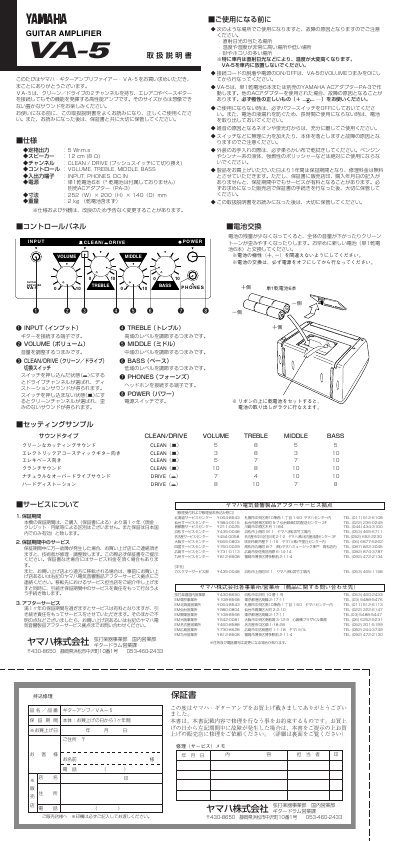

This manual is the user manual for the YAMAHA VA-5 electric guitar amplifier. It introduces the product's functions and features, usage methods, maintenance and maintenance, etc.
The Yamaha VA-5 is a high-performance guitar amplifier featuring two channels: Clean and Drive. It is designed to produce rich sound suitable for electric acoustic guitars, bass guitars, and standard electric guitars. The unit includes controls for volume, treble, middle, and bass, as well as an input jack, headphone output, and DC power input. This manual is written in Japanese.
| Output Power | 5 Wrms |
|---|---|
| Speaker Size | 18cm (8 inch) |
| Channels | CLEAN / DRIVE |
| Controls | VOLUME, TREBLE, MIDDLE, BASS |
| Power Source | 6 x AA batteries or PA-3 adapter |
Use the CLEAN/DRIVE switch; pushing it in selects the Drive channel for distortion sound, while not pressing it selects the Clean channel.
The amplifier operates with 6 single-cell dry batteries (AA size).
Set the channel to CLEAN, Volume to 5, Treble to 8, Middle to 5, and Bass to 5.
