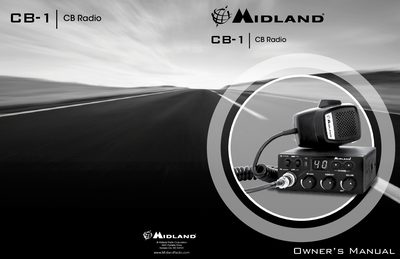

Midland CB-1 Mobile CB Radio Owner's Manual

This document is the owner's manual of Midland CB-1 CB Radio. It introduces the installation, operation and tuning of the radio.

Brand: Midland
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 1.7 MB
Published: 02 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9C83C987FCCEB115B4AB8DA6A77BFCE3
PDF: Midland CB-1 Mobile CB Radio Owner's Manual PDF

About this manual

This manual provides installation guidelines for the Midland CB-1 mobile CB radio, which is designed for 12-volt negative ground vehicle systems. It details the mechanical mounting process under the dash or on a console, ensuring safety regarding air bags and driver access. The guide also covers power wiring connections, including fuse placement and grounding requirements.

What's inside

Welcome to the World of Midland Electronics
How to Install your Midland Mobile CB
Accessories Included
Where to Locate your CB Transceiver
Mechanical Mounting
Power Wiring
Installation of Microphone Hanger
Antenna Installation and Location
Operating Controls
Back Panel Connections

Specifications

Voltage Requirement	12-volt negative ground-system
Antenna Impedance	50-ohm
External Speaker Rating	8 ohms and 5 watts

Frequently asked questions

Can I install this CB radio in a vehicle with a positive ground system?

No, you must not connect this transceiver to positive ground electrical systems.

What is the minimum separation distance for the antenna from persons?

The antenna must provide a separation distance of at least 8 inches (20cm) from all persons.

How do I turn the unit on and adjust the volume?

Rotate the on/off volume control clockwise to switch on the unit and adjust the volume.
