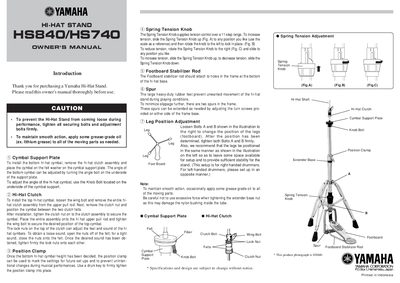

YAMAHA HS740A owner's Manual(1)(1)

About this manual

This document serves as an owner's guide for the Yamaha HS840 and HS740 hi-hat stands. It provides step-by-step instructions for installing the cymbals on both the support plate and the clutch assembly. The manual details how to adjust the angle of the bottom cymbal using the knob bolt and how to modify the sound feel by adjusting the lock nuts on the top clutch.

What's inside

• Introduction
• Cymbal Support Plate
• Hi-Hat Clutch
• Position Clamp
• Spring Tension Knob
• Footboard Stabilizer Rod
• Spur
• Leg Position Adjustment

Frequently asked questions

How do you adjust the angle of the bottom hi-hat cymbal?

Adjust the angle by turning the angle bolt located on the underside of the support plate.

How do you adjust the sound feel of the hi-hat?

Open the lock nuts off of the felt for a loose sound, or close them onto the felt for a tight sound.
