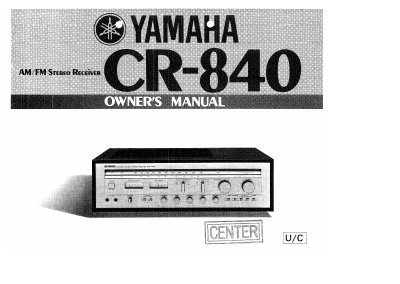

Yamaha CR-840 Stereo Receiver Owner's Manual

About this manual

This document is the owner's manual for the Yamaha CR-840 high-performance AM/FM stereo receiver. It details the unit's special features, including its noise-distortion clearance range, optimum tuning system (OTS), and twin-meter FM tuning with signal quality reading.

The guide provides instructions on operating the front panel controls, connecting audio equipment via the connection diagrams, and utilizing functions such as loudness compensation, filters, and tone controls. It also covers tape playback and recording procedures.

What's inside

• Special Features of the CR-840 Receiver
• Cautions - Read this before Operating Your CR-840
• Front Panel and Controls
• Connection Diagram
• Rear Panel and Connections
• Broadcast Reception
• Listening to Records
• LOUDNESS, FILTERS, and TONE Controls
• Tape Playback and Recording
• Trouble Shooting

Specifications

Frequently asked questions

What is the purpose of the OTS system?

The Optimum Tuning System (OTS) takes over fine-tuning to obtain minimum distortion and maximum stereo separation.

How does the signal strength meter function on FM?

It acts as both a signal strength indicator and a signal quality meter for FM reception.

What happens if I connect other audio equipment to the spare AC outlet sockets?

Do not connect other equipment that requires more power than the outlets are rated to provide.
