The MB02R96 peak meter bridge is a peak meter bridge for the Yamaha 02R96 Digital Mixing Console. It displays the average level and peak level of the input signal. The bridge can be installed on the front panel of the 02R96 for quick monitoring of the input signal.

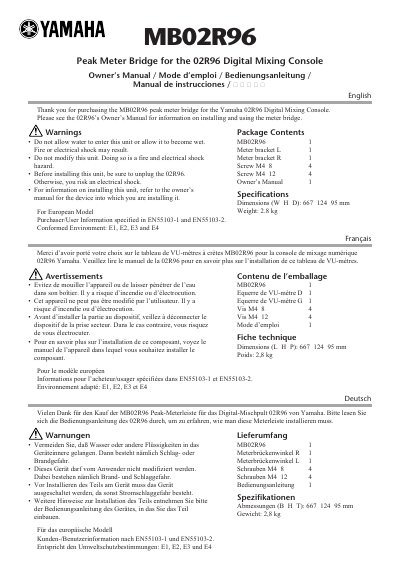

This document is the owner's manual for the Yamaha MBO2R96 Peak Meter Bridge, an accessory designed specifically for the 02R96 Digital Mixing Console. The guide provides essential information regarding the unit's packaging contents, including meter brackets and mounting screws.
The manual primarily focuses on safety warnings and installation prerequisites rather than detailed operating procedures. Users are directed to consult the main 02R96 Owner's Manual for specific instructions on installing and using the meter bridge within the console.
| Dimensions (WxHxD) | 667 x 124 x 95 mm |
|---|---|
| Weight | 2.8 kg |
It is designed for use with the Yamaha 02R96 Digital Mixing Console.
The dimensions are 667x124x95 mm (WxHxD).
The weight is 2.8 kg.
