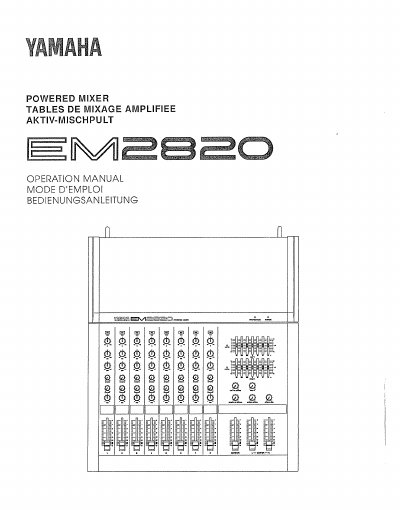

The Yamaha EM2820 is a stereo output powered mixer designed for small to midsize PA and sound reinforcement applications. It features a built-in 200-watt amplifier into 4 ohm loads, three-band equalization on each of the eight input channels, and a left and right master seven-band graphic equalizer. The unit includes an internal limiter circuit to prevent output signal distortion and offers versatile input options with XLR-type or phone jack connectors. A Phantom Master switch supplies +48 V for condenser microphones. Users are advised to read the manual thoroughly to benefit from the mixer's capabilities and to keep it for future reference.
| Amplifier Power | 200 watt into 4 ohm loads |
|---|---|
| Input Channels | 8 |
| Channel Equalization | Three-band |
| Master Equalizer | Seven-band graphic |
| Phantom Power | +48 V |
| Limiter Function | Prevents distortion |
Always turn the power OFF prior to connecting or disconnecting cables to prevent damage to the unit and connected equipment.
The LIMITER indicator lights when the limiter circuit is activated to prevent the signal from distorting at the SP OUT.
The PROTECTION indicator lights for approximately 6 seconds after the POWER switch is pressed to indicate that the protection circuitry is operating.
