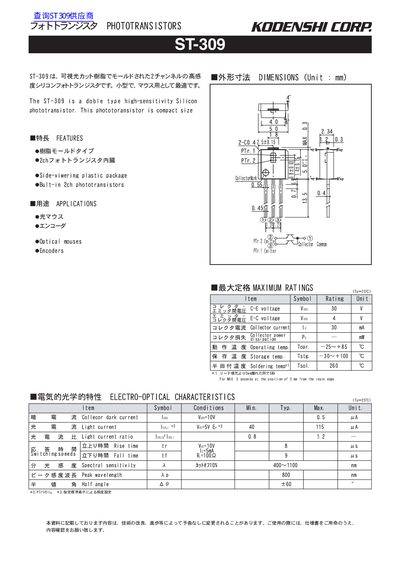

The document describes the Koden ST-309 as a double-type high-sensitivity silicon phototransistor molded with visible light-cutting resin. It is noted for its compact size, making it optimal for use in optical mice and encoders.
Key features include a side-viewing plastic package and built-in 2-channel phototransistors. The datasheet provides maximum ratings such as a collector-emitter voltage of 4V and operating temperatures from -25°C to +85°C, along with electro-optical characteristics like peak wavelength at 800nm. This manual is written in Japanese.
| Product Type | High-sensitivity Silicon phototransistor |
|---|---|
| Channels | 2ch |
| Collector-Emitter Voltage (Vce) | 4 V |
| Collector Current (Ic) | 30 mA |
| Operating Temperature | -25 to +85 C |
| Half Angle | 60 deg |
The ST-309 is suitable for optical mice and encoders.
The ST-309 is designed for use in optical mice and encoders.
The maximum collector current is 30 mA.
The peak wavelength is 800 nm.
