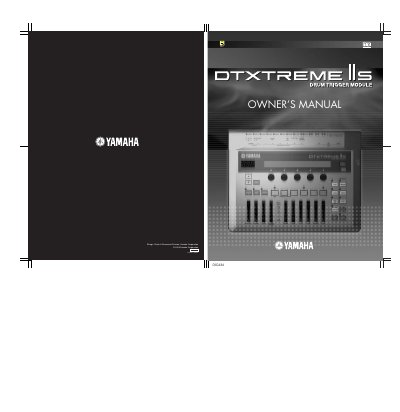

Yamaha DTXTREME II S Drum Trigger Module Owner's Manual

About this manual

This document is the owner's manual for the Yamaha DTXTREME II S drum trigger module. It provides essential information regarding product usage, including specific warnings about power supply compatibility (requiring PA-5C or PA-SD adaptors) and environmental safety measures such as avoiding water exposure and excessive heat.

The guide details operational precautions to prevent electrical shock, fire hazards, and physical injury. It also includes sections on FCC compliance for the USA market, battery disposal notices for lithium cells used in memory back-up, and instructions for recording model and serial numbers located on the bottom panel.

What's inside

• SPECIAL MESSAGE SECTION
• FCC INFORMATION
• IMPORTANT NOTICE
• P AUTIONS
• Battery Notice
• NAME PLATE LOCATION

Frequently asked questions

What is the minimum wire size required for a 25-foot or shorter extension cord?

The minimum wire size for a 25-foot cord or less is 18 AWG.

Which specific Yamaha adaptors are approved for powering this instrument?

You must use the specified adaptor PA-5C or PA-SD or an equivalent recommended by Yamaha.

What type of battery is contained inside the product for memory back-up?

The product contains a lithium battery for memory back-up.
