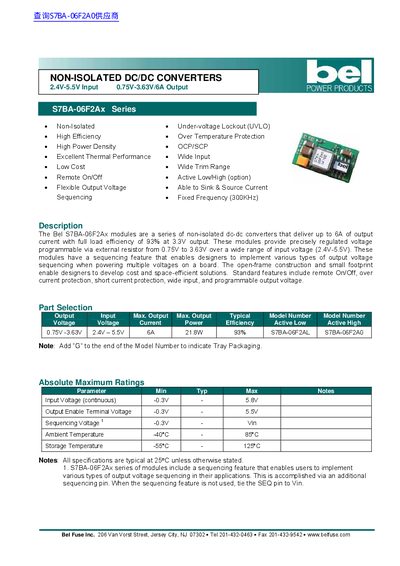

The Bel S7BA-06F2Ax modules from Bel Fuse Inc. are a series of non-isolated DC-DC converters that provide 0.75V-3.63V/6A output within the input voltage range of 2.4V-5.5V. These modules feature high efficiency, over temperature protection, OCP/SCP, excellent thermal performance, and are suitable for various applications.
The Bel Fuse S7BA-06F2Ax series consists of non-isolated DC/DC converters designed to deliver up to 6A of output current with a full load efficiency of 93% at a 3.3V output. These modules provide precisely regulated voltage programmable via an external resistor from 0.75V to 3.63V over a wide input voltage range of 2.4V to 5.5V. The series includes a sequencing feature that enables designers to implement various types of output voltage sequencing when powering multiple voltages on a board.
| Output Current | 6A |
|---|---|
| Full Load Efficiency | 93% |
| Input Voltage Range | 2.4V-5.5V |
| Output Voltage Range | 0.75V-3.63V |
| Switching Frequency | 300KHz |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 20.32 x 11.42 x 6.36 mm |
The modules deliver up to 6A of output current.
The full load efficiency is 93% at 3.3V output.
Yes, the modules have a sequencing feature that enables designers to implement various types of output voltage sequencing.
