This document describes the non-isolated DC/DC converters from Bel Fuse Inc. These converters feature wide input voltage range, high efficiency, high power density, and excellent thermal performance. The products have various functions and protection features, suitable for industrial temperature range. The output voltage range is 0.75V to 3.63V, the input voltage range is 4.5V to 14V, and the maximum output current is 10A.

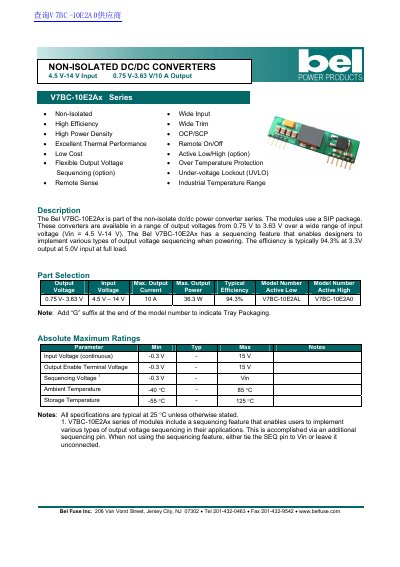

The Bel Fuse V7BC-10E2Ax is a non-isolated DC/DC power converter module designed for industrial applications with a wide input voltage range of 4.5 V to 14 V. These modules utilize a SIP package and offer high efficiency, typically reaching 94.3% at full load depending on the output voltage configuration.
| Input Voltage Range | 4.5 V - 14 V |
|---|---|
| Output Voltage Range | 0.75 V - 3.63 V |
| Max Output Current | 10 A |
| Typical Efficiency (Vo=3.3V) | 94.3% |
| Switching Frequency | 265 kHz - 335 kHz |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Type | SIP |
The typical efficiency is 94.3% at 3.3V output with a 5.0V input at full load.
The converter provides a maximum output current of 10 A.
The typical efficiency is 94.3% at 3.3 V output at 5.0 V input at full load.
The module dimensions are 2.0 x 0.5 x 0.32 inches or 50.8 x 12.7 x 8.13 millimeters.
