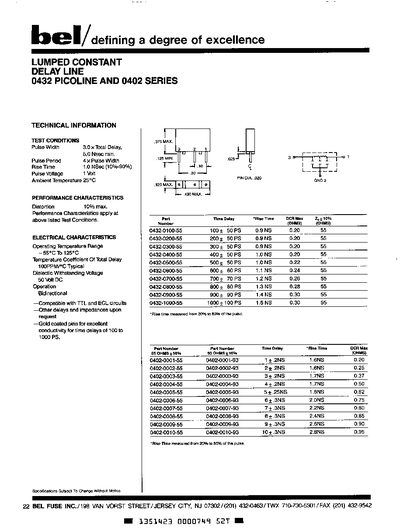

This datasheet provides detailed technical information for Bel's 0432 PICOLINE and 0402 series lumped‑constant delay line components. It includes test conditions, electrical characteristics, and performance parameters such as pulse width, rise time, and dielectric voltage.
The document lists part numbers with corresponding time delay, rise time, and DCR values, and specifies operating temperature range, ambient temperature, and dielectric withstanding voltage. All performance figures apply under the listed test conditions.
| Pulse Width | 3.0x total delay, 5.0 ns min |
|---|---|
| Rise Time | 1.0 ns (10%-80%) |
| Pulse Voltage | 1 V |
| Ambient Temperature | 25 °C |
| Operating Temperature Range | 55 °C to 125 °C |
The ambient temperature is specified as 25 °C.
