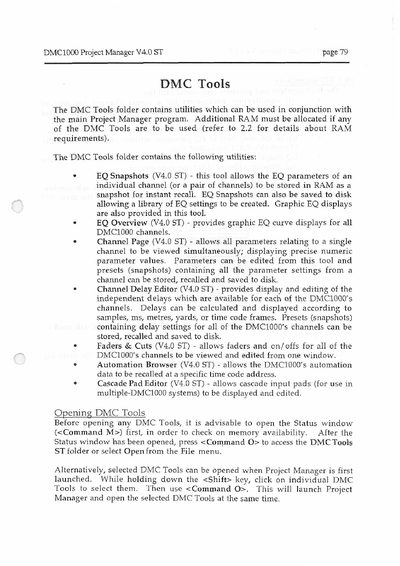

This document serves as a user guide for the DMC1000 Project Manager V4.0 ST software, specifically focusing on the DMC Tools folder. It explains how to access and utilize various utilities such as EQ Snapshots, EQ Overview, Channel Page, and Channel Delay Editor to manage audio parameters on the DMC1000 system.
The manual provides detailed instructions on operating the EQ Snapshots tool, including selecting channels, editing parameters like gain and frequency, storing up to 256 snapshots in RAM, and recalling them. It also covers file management for snapshot libraries and compatibility with earlier versions of the software.
| Maximum EQ Snapshots | 256 |
|---|---|
| Delay units | samples, ms, metres, yards, or time code frames |
| Filter types | Peak, LSHL, HSHL, Band, LPF2, HPF2, LPF1, HPF1 |
Open the Status window first, then press
Yes, EQ Snapshots 1 to 9 can be directly recalled using the Mac's numeric keypad when the main EQ Snapshots window is open.
