The document provides instructions for operating the Yamaha DMC1000 V3.0 digital mixing console. It details how to configure Bus Out signals using various connector formats such as 25-pin D-sub, AES/EBU, and SDIF2. The guide explains how to set output levels, control stereo pairs, and monitor bus outputs on the meter bank.
Further sections cover Stereo Output connections including Y2, XLR, BNC, and CD/DAT formats, along with noise shaping settings for 16-bit and 20-bit recording. The manual also describes C-R Monitor functions (EXT, CUE, ST) and Solo/AFL modes, as well as automation data copying and saving to floppy disk.

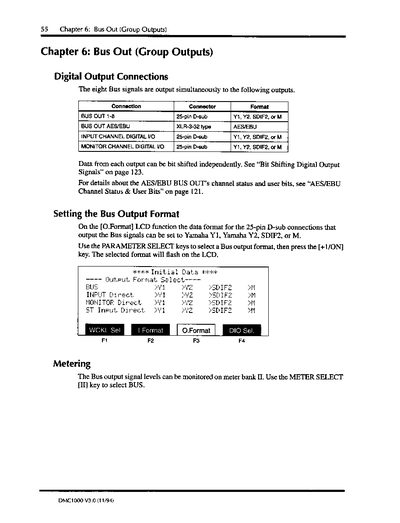

The eight Bus signals are output simultaneously to a 25-pin D-sub or an XLR-3-32 type AES/EBU connection.
You must set the "Bus Stereo Link" parameter to "on" on the [Config.] LCD function.
If Noise Shaping is set to off, no noise shaping is applied to the digital audio processing.
