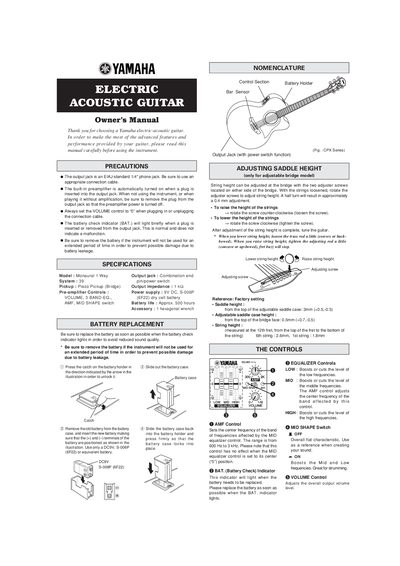

This document is the Yamaha electric-acoustic guitar owner's manual, which mainly introduces the function characteristics and usage methods of electric-acoustic guitar
This Owner's Manual is designed for the Yamaha CPX Series electric-acoustic guitar. It explains the nomenclature of the control section, including the bar sensor and output jack, and provides safety precautions for using the instrument. The guide details how to adjust the saddle height for adjustable bridge models and explains the functions of the pre-amplifier controls, such as the 3-band equalizer and MID SHAPE switch.
| Pickup System | Piezo Pickup (Bridge) |
|---|---|
| Pre-amplifier Controls | VOLUME, 3 BAND-EQ., AMF, MID SHAPE switch |
| Output Impedance | 1 kΩ |
| Power Supply | 9V DG, S-006P (6F22) dry cell battery |
| Battery Life | Approx. 500 hours |
Loosen the strings and rotate the adjuster screws on either side of the bridge; a half turn results in approximately a 0.4 mm adjustment.
The BAT. indicator lights when the battery needs to be replaced to avoid reduced sound quality.
