This manual provides instructions for the use of an electric acoustic guitar, including adjusting volume controls when connecting or disconnecting cables, turning off the preamplifier power when not in use, turning off the tuner switch after use, and replacing batteries. The electric acoustic guitar features a new pickup and electronics system designed to capture and deliver a real acoustic sound similar to that of a microphone-recorded acoustic guitar. Please read this manual carefully to fully utilize the advanced features and performance provided by the guitar.

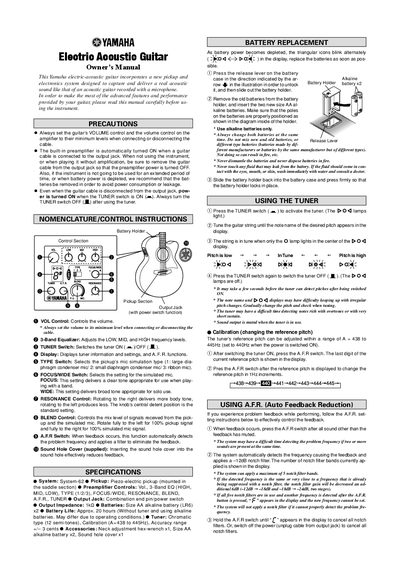

This owner's manual covers the operation of a Yamaha electric-acoustic guitar equipped with a new pickup and electronics system designed to capture real acoustic sound. It details how to use controls such as the Volume, 3-Band Equalizer, TYPE switch for mic simulation, FOCUS/WIDE settings, RESONANCE, BLEND, and the A.F.R. (Auto Feedback Reduction) function.
| System | System-62 |
|---|---|
| Pickup Type | Piezo-electric pickup (mounted in the saddle section) |
| Output Impedance | 1kΩ |
| Batteries Required | Size AA alkaline battery (LR6) x2 |
| Battery Life | Approx. 20 hours (Without tuner and using alkaline batteries) |
| Tuner Accuracy Range | +/-3 cents |
Use the TYPE switch to select between large diaphragm condenser, small diaphragm condenser, or ribbon mic.
It automatically detects problem frequencies causing feedback and applies a filter to eliminate it.
