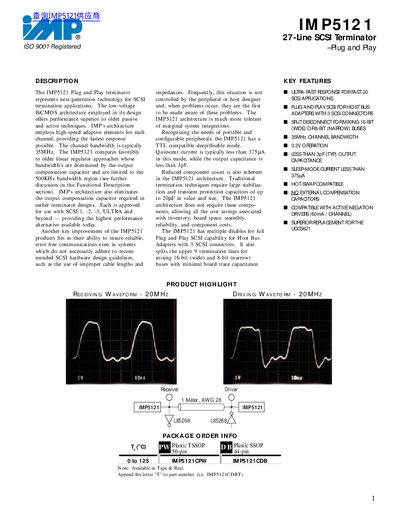

The IMP5121 is a high performance SCSI terminator which features a low voltage BiCMOS architecture that provides performance superior to older passive and active techniques. The IMP5121 has a 35MHz channel bandwidth and each channel employs high performance adaptive elements to provide the fastest possible response time. The IMP5121 also eliminates the output compensation capacitor required in earlier terminator designs.
The IMP5121 is a next-generation SCSI terminator designed with a low-voltage BiCMOS architecture to offer superior performance over older passive and active techniques. It features high-speed adaptive elements for each channel, providing a typical bandwidth of 35MHz, which significantly outperforms traditional linear regulator approaches limited to lower bandwidths.
| Channel Bandwidth | 35 MHz (Typical) |
|---|---|
| Termination Voltage | 3.0 V to 5.5 V |
| Operating Junction Temperature | -40°C to +125°C |
| Output High Voltage | 2.65 V to 2.85 V |
| Output Capacitance | < 3 pF (Typical) |
The typical channel bandwidth is 35MHz.
Yes, it is approved for use with SCSI-1, -2, -3, ULTRA and beyond.
The quiescent current is typically less than 375µA.
