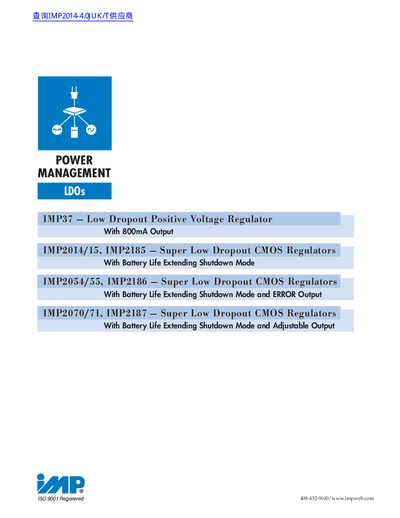

The document introduces the LDOs POWER MANAGEMENT product series, including IMP3, IMP37, IMP20, IMP20114/15, IMP25, IMP21185, IMP205, IMP2054/55, IMP24/55, IMP21186, IMP2070/711, IMP2, and IMP211887. These products have features such as low dropout, adjustable output, super low dropout, CMOS technology, battery life extending shutdown mode, and ERROR output.
The IMP37 series consists of three-terminal low dropout (LDO) voltage regulators designed to provide guaranteed low dropout voltages at currents up to 0.8A. The family features fixed output voltages of 2.5V, 3.0V, and 3.3V, which are factory trimmed to within 1% of the nominal value.
Key characteristics include greatly reduced quiescent operating current (75µA maximum), short circuit protection, and a thermal protection circuit that shuts off the regulator if the junction temperature exceeds 165°C. The devices are available in SOT-223 and TO-263 packages and are pin compatible with fixed '1117' type regulators.
| Maximum Output Current | 800mA |
|---|---|
| Output Voltages | 2.5V, 3.0V and 3.3V |
| Output Voltage Tolerance | 1% |
| Maximum Dropout Voltage (800mA) | 0.95V |
| Maximum Dropout Voltage (100mA) | 0.8V |
The dropout voltage is guaranteed to be 0.95V or lower at 0.8A.
The devices include short circuit protection and a thermal protection circuit that shuts off if the junction temperature exceeds 165°C.
