This document describes a product that complies with the EU RoHS directive. The product model is JA ZH FL512M/FL1024M PS 23 and has specific features and characteristics.

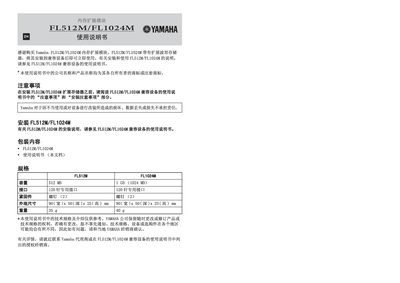

The Yamaha FL512M/FL1024M is a memory expansion module designed to extend waveform storage capacity when installed into compatible devices. This document serves as a quick reference for the module itself, directing users to the specific user manual of their compatible device for detailed installation and operation instructions.
Key specifications include a 512MB or 1024MB capacity depending on the model (FL512M or FL1024M), utilizing a dedicated 120-pin interface. The module measures approximately 90mm x 50mm x 25mm and weighs either 35g or 40g. It also confirms compliance with EU RoHS regulations regarding hazardous substances. This manual is written in Chinese.
| Capacity (FL1024M) | 1024 MB |
|---|---|
| Interface Type | Dedicated 120-pin interface |
| Dimensions (FL512M) | 90(W)x 50(D)x 25(H) mm |
| RoHS Compliance | Complies with EU RoHS regulations |
Please refer to the user manual of your FL512M/FL1024M compatible device.
The FL512M module has a capacity of 512 KB.
The FL1024M module has a capacity of 1024 KB.
The FL512M module measures 90 mm wide, 50 mm deep, and 25 mm high.
