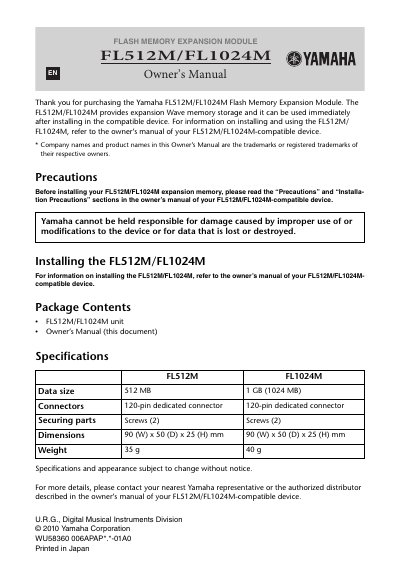

This document provides instructions for using and installing the Yamaha FL512M/FL1024M Flash Memory Expansion Module.
The Yamaha FL512M/FL1024M is a memory expansion module designed to increase waveform storage capacity when installed into compatible devices. This guide serves as a quick reference for the module itself, noting that detailed installation and usage procedures should be followed according to the user manual of the specific compatible device. This manual is written in Chinese.
| Capacity (FL512M) | 512 KB |
|---|---|
| Capacity (FL1024M) | 1024 KB |
| Interface | 120-pin dedicated interface |
| Dimensions (FL512M) | 90 x 50 x 25 mm |
| Weight (FL1024M) | 40 g |
Two screws are provided for each model.
