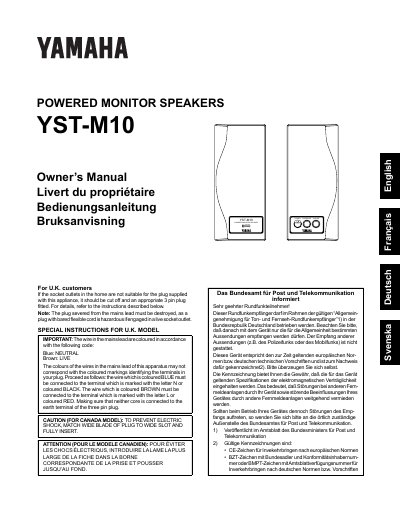

This is a YST-M10 speaker manual
The Yamaha YST-M10 is a pair of powered monitor speakers utilizing Active Servo Technology to deliver high-quality audio from a compact cabinet. Each unit features an 8 cm drive unit and a bass port, with the right-channel cabinet including a 10-watt per channel amplifier and volume/presence controls. The system is designed for use with personal computers, multimedia systems, and other audio sources via a 3.5 mm stereo jack input.
| Output Power | 10 W per channel |
|---|---|
| Drive Unit | Full-range 8 cm (3.5 inch) magnetically shielded |
| Frequency Response | 80 Hz ~ 20 kHz +3 dB |
| Input Impedance | 25 kΩ |
| Power Requirements (U.S. & Canadian Model) | 120V AC, 60 Hz |
| Dimensions (W x H x D) | 97 x 223 x 162 mm |
It is a system pioneered by Yamaha that allows small and medium size speaker cabinets to produce bass performance usually associated with large cabinets.
You should hold and pull the plug, not the power cord, and always disconnect the adaptor before making any connections.
Yes, they are ideal for use with computer multimedia applications and can be connected via a 3.5 mm stereo jack.
