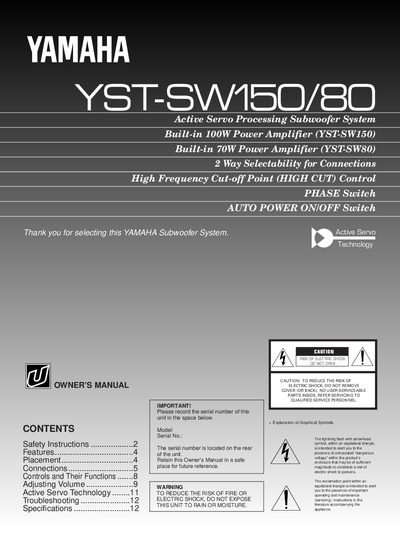

Yamaha YST-SW150/80 Active Servo Processing Subwoofer System Owner's Manual

This document is the owner’s manual of YST-SW150/80, which introduces the features and functions of the product, as well as the usage and precautions.

Brand: Yamaha
Category: Home Speakers
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 383 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Models: YST-SW150, YST-SW80
MD5 checksum: 8BA774069308554E2DCB826A5DB7232A
PDF: Yamaha YST-SW150/80 Active Servo Processing Subwoofer System Owner's Manual PDF

About this manual

The Yamaha YST-SW150/80 is an Active Servo Processing Subwoofer System designed to enhance bass frequency response in audio systems. The system includes two models: the YST-SW150 with a built-in 100W power amplifier and the YST-SW80 with a built-in 70W power amplifier. Key features include selectable 2-way connections, high-frequency cut-off control (HIGH CUT), phase switching, and an automatic power on/off function.

What's inside

Safety Instruction
Features
Placement
Connections
Controls and Their Functions
Adjusting Volume
Active Servo Technology
Troubleshooting
Specifications

Specifications

Power Amplifier (YST-SW150)	Built-in 100W Power Amplifier
Power Amplifier (YST-SW80)	Built-in 70W Power Amplifier

Frequently asked questions

How should I place the subwoofer for best results?

It is recommended to place one subwoofer on the outside of either the right or left main speaker, or use two subwoofers placed on the outside of each main speaker.

What is the power output of the YST-SW150 and YST-SW80 models?

The YST-SW150 has a built-in 100W power amplifier, while the YST-SW80 has a built-in 70W power amplifier.
