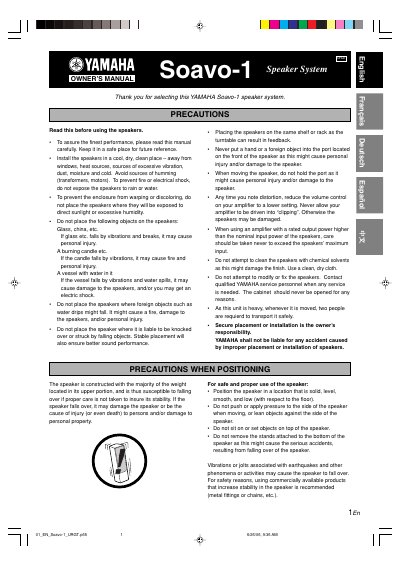

This document is about precautions to be taken before using the speakers. It includes information on installation location, not placing objects on the speakers, and avoiding placing the speakers where they may be knocked over or struck by falling objects.
The Yamaha Soavo-1 is a 3-way, 4-speaker bass-reflex floor-standing tower speaker designed for main channels. It features dual 16 cm A-PMD cone woofers, a 13 cm midrange driver, and a 3 cm aluminum dome tweeter. The unit includes an aluminum diecast stand with spikes to improve stability and sound quality on various surfaces.
The document details safety precautions regarding placement away from heat sources, moisture, and vibration, as well as warnings about the heavy weight of the speaker requiring two people for transport. It provides step-by-step instructions for attaching the front cover, connecting speakers using standard or bi-wired methods to amplifiers with single or dual output terminals, and adjusting spike lengths.
| Type | 3-way, 4-speaker bass-reflex floor standing tower speaker |
|---|---|
| Woofer | Dual 16 cm A-PMD cone |
| Midrange | 13 cm A-PMD cone |
| Tweeter | 3 cm Aluminum dome |
| Frequency Response | 35 Hz to 50 kHz (-10 dB) |
| Sensitivity | 89 dB/2.83 V/m |
| Crossover Frequency | 500 Hz, 5 kHz |
| Dimensions (WxHxD) | 349 x 1051 x 487 mm |
| Weight | 27 kg (59 lbs. 8 oz.) |
The speakers should be slightly angled in towards the listeners to obtain better stereo images.
Yes, they support standard and bi-wired connections. Bi-wiring requires removing jumper cables and connecting woofer and tweeter/mid-range terminals separately.
Two people are required to transport it safely because the unit is heavy.
