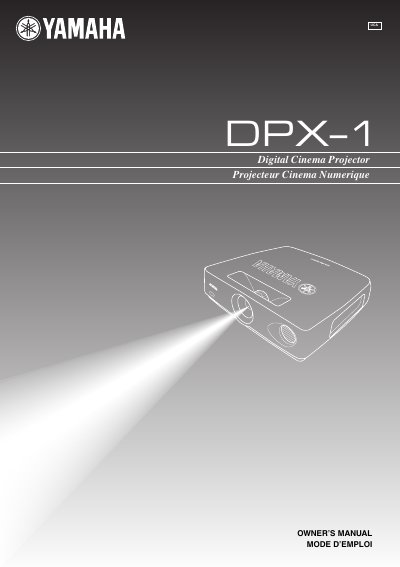

This manual introduces the use and precautions for the DPX-1 Digital Cinema Projector, including installation, operation, and maintenance.
The Yamaha DPX-1 is a digital cinema projector featuring DLP technology with high-brightness and high-contrast images. It supports various input formats including component video, RGB, S-video, composite video, and DVI signals through its front and terminal panels.
This guide covers the setup process, including installation requirements such as ventilation clearance and environmental conditions. It details how to connect different signal sources, operate the controls on the unit and remote control, adjust image settings like focus and zoom, and perform maintenance tasks such as cleaning filters and replacing the lamp after 1000 hours of usage.
Replace the lamp when the LAMP/COVER indicator flashes in red after the lamp usage has exceeded 1000 hours.
The unit must be used within a temperature range of 5—35°C.
Install the unit with at least 10 cm (4 inch) of ventilation space on the top, right and left, and at the back.
