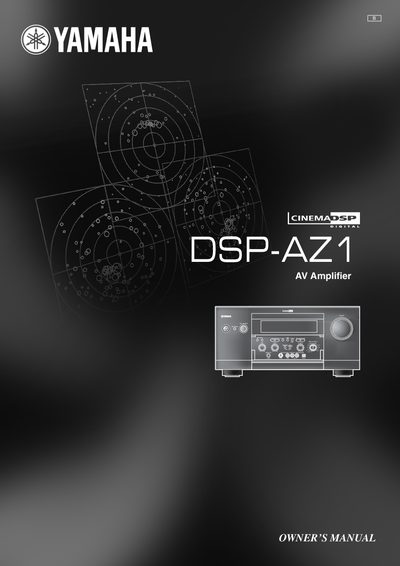

This is the owner's manual for the DSP-AZ1 AV amplifier, which describes the various functions and settings of the amplifier.
The Yamaha DSP-AZ1 is an 8-channel power amplifier featuring built-in digital signal processing (DSP) technology. It supports various surround sound formats including Dolby Digital, DTS, and their enhanced versions to recreate cinema-quality audio in home environments.
The manual covers essential preparations such as speaker system configuration and placement, along with detailed connection instructions for the front panel, remote control, and rear panel inputs/outputs. Users can adjust speaker output levels and utilize advanced features like sleep timers and Zone 2 functionality.
| Main Channel Output Power | 130 W + 130 W (8Ω) RMS |
|---|---|
| Rear Channel Output Power | 130 W + 130 W (8Ω) RMS |
| Frequency Response | 20 — 20,000 Hz |
| Total Harmonic Distortion (Main) | 0.015% THD |
You need at least 30 cm on top, 10 cm on the right and left, and 10 cm at the back.
Yes, it is equipped with a decoder for Dolby Digital and Dolby Digital EX.
Yes, you can enjoy listening to the CINEMA DSP soundfields on headphones using the SILENT CINEMA DSP algorithm.
