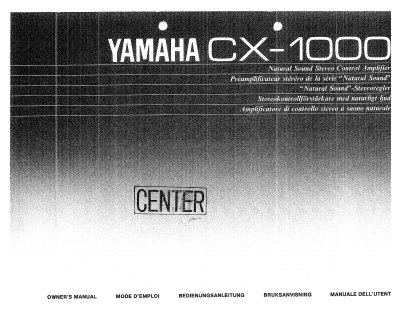

This manual provides instructions for the Yamaha CX-1000 control amplifier, a device capable of accepting both analog and digital signals. It details the setup process, including connection diagrams for various sources like CD players, turntables, and tuners, as well as digital connections using coaxial or optical fiber connectors.
The document explains the functions of the front panel controls, remote control usage, and includes a troubleshooting chart for common operation errors. It also lists the supplied accessories and provides safety instructions regarding ventilation and power cord usage.
| Voltage | 110/120, 220/240V AC, 50/60Hz |
|---|---|
| Digital Technology | Hi-Bit technology system |
The supplied accessories include a remote control transmitter, remote control cables for turntable and tuner, protective caps for optical terminals, and shorting pins for PHONO terminals.
The openings on the cabinet must not be obstructed to ensure proper ventilation and prevent the temperature inside from rising.
