The KPI-L06 is a high-performance photointerrupter that combines a high-output GaAs infrared emitting diode (IRED) with a high-sensitivity phototransistor.

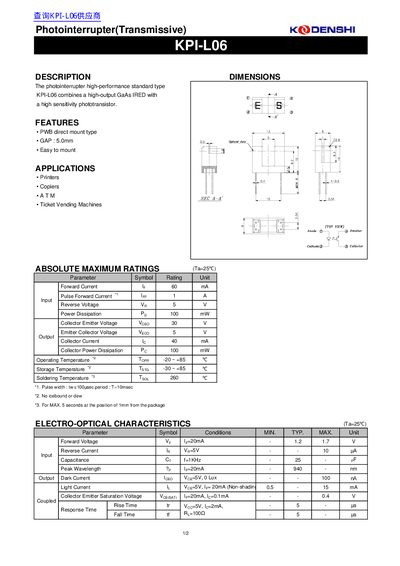

This document is a technical datasheet for the KodenShi KPI-L06, a standard type transmissive photointerrupter. The device combines a high-output Gallium Arsenide (GaAs) Infrared Emitting Diode with a high-sensitivity phototransistor and features a PWB direct mount design.
| Forward Current (Ir) | 60 mA |
|---|---|
| Reverse Voltage (Vr) | 5 V |
| Collector Emitter Voltage (Vceo) | 30 V |
| Operating Temperature | -20 ~ +85 °C |
| Peak Wavelength | 940 nm |
The absolute maximum forward current (Ir) is rated at 60 mA.
The photointerrupter operates within a temperature range of -20 to +85 °C.
The typical peak wavelength (λp) for a forward current of 20 mA is 940 nm.
