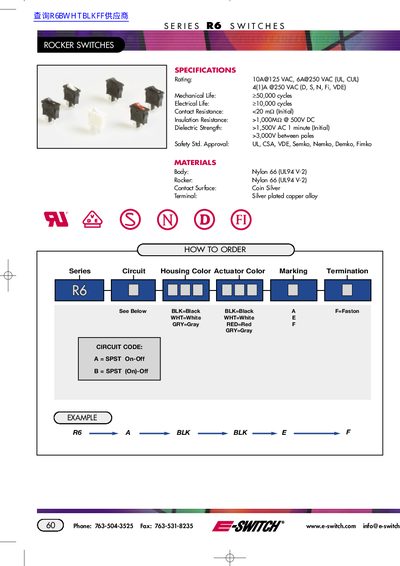

R6 series switch specifications, characteristics and ordering methods
This document provides specifications for the E-Switch RO Series rocker switches. It lists electrical and mechanical ratings, including a mechanical life of 250,000 cycles and an electrical life of 210,000 cycles. The switches are constructed from Nylon 66 and feature coin silver or silver-plated copper alloy contacts.
| Mechanical Life | 250,000 cycles |
|---|---|
| Electrical Life | 210,000 cycles |
| Contact Resistance | <20 mQ (Initial) |
| Insulation Resistance | >1,000MQ @ 500V DC |
| Dielectric Strength | >1,500V AC 1 minute (Initial) |
| Body Material | Nylon 66 (UL94 V-2) |
| Contact Surface | Coin Silver |
| Terminal Material | Silver plated copper alloy |
The available circuit codes are A for SPST On-Off and B for SPST (On)-Off.
The switches are approved for UL, CSA, VDE, Semko, Nemko, Demko, and Fimko.
