Specifications of 100A SPDT switches, including contact resistance, insulation resistance, dielectric strength, operating temperature, etc.

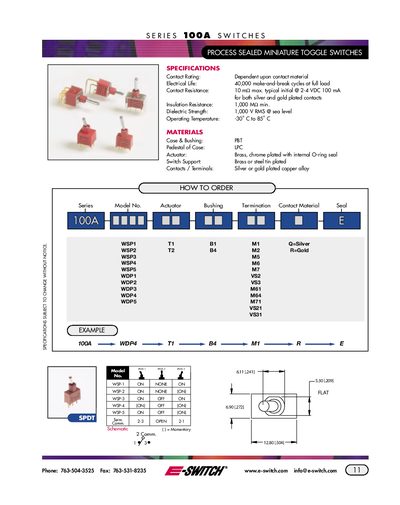

This document provides technical data for the E-Switch Series 100A Process Sealed Miniature Toggle Switches. It covers electrical ratings, insulation properties, operating temperatures, and material compositions including PBT cases and brass actuators.
The datasheet details various configuration options available for ordering, such as actuator styles (WSP, WDP), bushing types, termination codes, and contact materials (silver or gold plated). It also includes dimensional drawings and mounting information for SPDT and DPDT configurations.
| Electrical Life | 40,000 make-and-break cycles at full load |
|---|---|
| Contact Resistance | 10 mQ max. typical initial @ 2-4 VDC 100 mA |
| Insulation Resistance | 1,000 MQ min. |
| Dielectric Strength | 1,000 V RMS @ sea level |
| Operating Temperature | -30° C to 85° C |
| Case & Bushing Material | PBT |
| Actuator Material | Brass, chrome plated with internal O-ring seal |
The contact resistance is 10 mQ max. typical initial @ 2-4 VDC 100 mA.
Options include silver or gold plated copper alloy, and copper alloy with gold plate over nickel plate.
