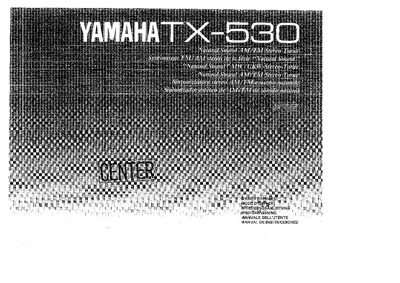

The Yamaha TX-530 is a sophisticated AM/FM stereo tuner designed to provide high-quality audio reception. The unit includes both indoor AM loop and FM antennas, as well as provisions for optional outdoor antennas to improve signal clarity in areas with poor reception.
Operation involves selecting the desired band (FM or AM), tuning stations manually or automatically, and storing up to 20 preset frequencies. Users can adjust settings such as IF bandwidth (Wide/Narrow) for selectivity and distortion-free sound, and utilize features like HI BLEND to reduce high-frequency noise.
The unit supports AC mains voltages of 110 — 120/220 — 240V at 50/60 Hz.
Up to 20 station frequencies and reception modes can be stored using the preset station buttons.
The manual specifies cutting the end of the 75-ohm coaxial cable to lengths of 7/48, 6 (1/4), or 8 (5/16) inches.
