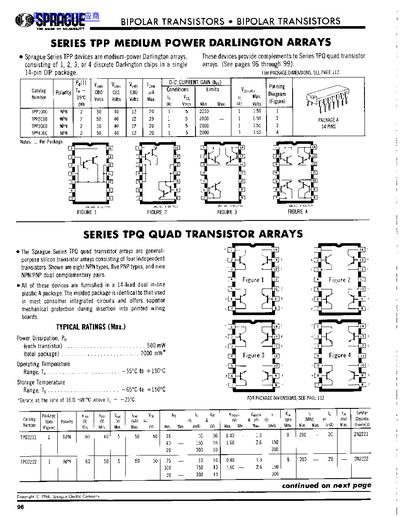

The document details the Sprague Series TPQ quad transistor arrays, which consist of four independent transistors in a single 14-lead dual in-line plastic package. These arrays are designed for general-purpose silicon applications and offer mechanical protection suitable for insertion into printed wiring boards.
| Power Dissipation (each transistor) | 500 mW |
|---|---|
| Power Dissipation (total package) | 2000 mW |
| Operating Temperature Range | -45°C to +150°C |
| Storage Temperature Range | -65°C to +150°C |
| Package Type | 14-lead dual in-line plastic |
