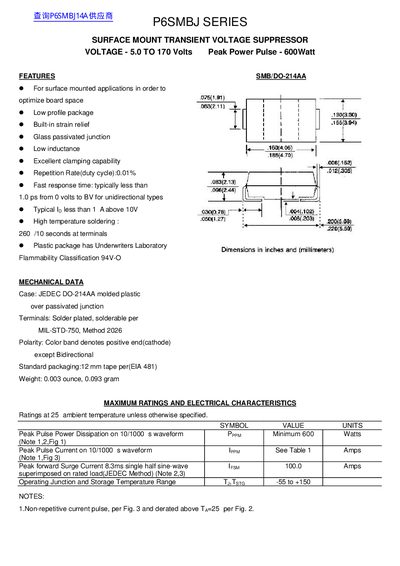

P6SMBJ series surface mount transient voltage suppressor has a rated voltage range of 5.0 to 170 volts and a peak power pulse of 600 watts. The product has excellent clamping capability, low repetition rate and high response time.
The document provides a comprehensive overview of the P6SMBJ Series Surface Mount Transient Voltage Suppressors (TVS). Key features include a low profile package with built-in strain relief, glass passivated junctions for reliability, and low inductance. The devices are designed for surface-mounted applications to optimize board space and offer excellent clamping capability.
| Peak Pulse Power Dissipation | 600 Watts |
|---|---|
| Operating Junction Temperature Range | -55 to +150 C |
| Package Type | JEDEC DO-214AA molded plastic |
| Repetition Rate (duty cycle) | 0.01% |
Typically less than 1.0 ps from 0 volts to BV.
Less than or equal to 100.0 Amps.
