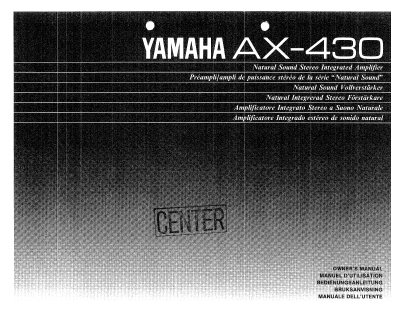

Yamaha AX-430 Integrated Amplifier Owner's Manual

About this manual

This document is the Owner's Manual for the Yamaha AX-430 Integrated Amplifier. It covers safety precautions, installation guidelines, and cleaning instructions to ensure proper operation and longevity of the unit. The manual includes specific wiring diagrams and connection procedures for various audio components.

What's inside

• Safety Precautions
• Location and Ventilation
• Power Cord Handling
• Connecting Speakers
• Connecting a Turntable
• Connecting a Tuner
• Connecting CD and Video/Aux
• Connecting Tape Decks
• Front Panel Controls
• AC Outlets

Specifications

Frequently asked questions

What is the function of the CD Direct switch?

It routes the CD input signal directly to the output stage, bypassing the Input Selectors, Loudness, and Balance controls to provide a pure sound.

What is the maximum wattage allowed on the unswitched AC outlet?

Do not connect appliances totaling more than 200 watts to the unswitched outlet.

How much wire insulation should be stripped from speaker wire ends?

Strip about 1cm of insulating material from the ends of the speaker wires.
