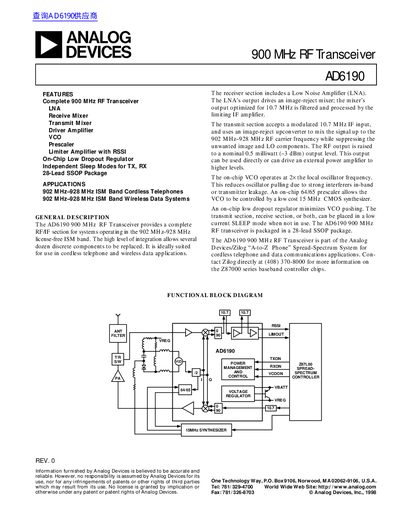

The AD6190 is a 900MHz RF transceiver with high integration that includes LNA, receive mixer, transmit mixer, driver amplifier, VCO, pre-divider, limiter amplifier, RSSI, low dropout regulator, etc. It is ideal for use in 902MHz-928MHz license-free ISM band cordless telephone and wireless data systems.
The AD6190 is a complete 900 MHz RF transceiver designed for systems operating in the 902 MHz-928 MHz license-free ISM band. It integrates a low noise amplifier (LNA), receive and transmit mixers, a driver amplifier, a VCO, and a prescaler. The device is intended to replace several dozen discrete components in cordless telephone and wireless data applications.
| Frequency Range | 902 MHz-928 MHz |
|---|---|
| Operating Temperature Range | -20 +85 °C |
| Supply Voltage | 3.0 4.6 Vv |
| Power Gain (Receive) | 24 dB |
| Noise Figure | 4.2 dB |
| Nominal Output Power | -3 dBm |
| Package Type | 28-Lead SSOP |
The AD6190 operates in the 902 MHz-928 MHz license-free ISM band.
The supply voltage (VBATT) ranges from 3.0 V to 4.6 V.
The device operates within a temperature range of -20°C to +85°C.
