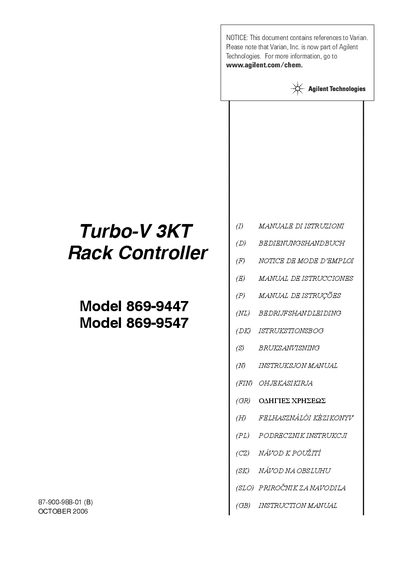

This is the user manual for Agilent Technologies Turbo-V 3KT Rack Controller 869-9447 Model 869-9547.
This document is an instruction manual for the Agilent Technologies Turbo-V 3KT Rack Controller, formerly manufactured by Varian. It provides guidance on storage conditions, installation requirements including ventilation and environmental limits, and safety precautions regarding high voltages within the unit.
The guide details operational procedures such as selecting HIGH/LOW speed modes, starting and stopping the pump via front panel buttons or remote control, and monitoring parameters like cycle time and rotational speed. It also covers technical information on interconnections for logic inputs/outputs, accessories, and pumps.
During transport and storage, the ambient temperature must be between -20 °C and +70 °C, with relative humidity from 0% to 95% without condensation.
During operation, the controller must be kept in an environment with a temperature between 0 °C and +40 °C and relative humidity from 0% to 95% non-condensing.
Press the button for selecting HIGH/LOW SPEED repeatedly to cycle through the modes. This is only active when the front panel control mode is selected.
