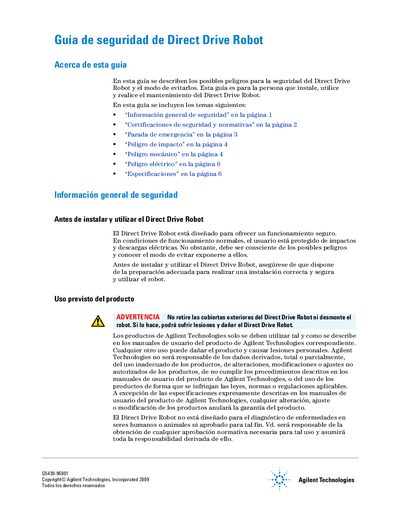

This document describes the safety hazards of the Agilent Technologies' Direct Drive Robot and how to avoid them.
This document serves as a safety guide for the Agilent Direct Drive Robot, intended for personnel responsible for installing, using, and maintaining the device. It details potential hazards such as impact, mechanical movement, electrical risks, and provides instructions on how to avoid injury or equipment damage.
The guide covers specific safety protocols including the use of remote emergency stops, installation within protective enclosures, and adherence to high-voltage warnings. It also includes technical specifications regarding the robot's dimensions, reach, weight, and mounting requirements. This manual is written in Spanish.
| Height | 85.1 cm |
|---|---|
| Width (start position) | 51 cm |
| Depth (start position) | 38.8 cm |
| Weight | 31.1 kg |
| Cable length | 2.4 m |
| Radial reach | 63.5 cm |
| Vertical reach range | 3.17-52.07 cm |
It is intended for the person who installs, uses, and performs maintenance on the Direct Drive Robot.
You must always deactivate the electrical current and disconnect the power cable.
The maximum radial reach is 63.5 cm from the center of rotation to the center of the microplate.
