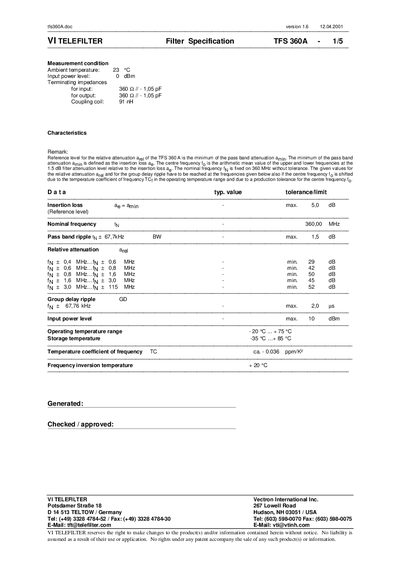

This document describes the specifications and characteristics of the TFS 360A filter by VI TELEFILTER.
This document is a technical specification sheet for the VI TELEFILTER model TFS 360A. It defines the operating conditions, such as an ambient temperature of 23 °C and input power level of 0 dBm, along with specific terminating impedances and coupling coil requirements.
The datasheet provides detailed electrical performance data including insertion loss (max. 5.0 dB), nominal frequency of 360 MHz, and relative attenuation across various frequency bands. It also outlines stability characteristics required after shock, vibration, damp heat, and solder heat tests.
| Nominal frequency | 360.00 MHz |
|---|---|
| Insertion loss (max) | 5.0 dB |
| Pass band ripple | max. 15 dB |
| Operating temperature range | -20°C ...+ 75°C |
| Storage temperature | -35 °C ...+ 85°C |
| Input power level (max) | 10 dBm |
The nominal frequency for this filter is fixed at 360.00 MHz.
The maximum input power level for this filter is 10 dBm.
The unit operates between -20°C and +75°C, while the storage range is -35°C to +85°C.
