VC-710 is a voltage controlled crystal oscillator produced by Vectron International. It operates at the fundamental frequency of the internal HFF crystal and has the characteristics of low phase noise, miniaturization, high frequency and wide temperature range.
The VC-710 voltage‑controlled crystal oscillator from Vectron International provides output frequencies from 120 MHz to 200 MHz with complementary PECL outputs and ultra‑low jitter. It is supplied in a small industry‑standard hermetically sealed surface‑mount package (5.0 × 7.5 × 1.8 mm) and is available on tape and reel.

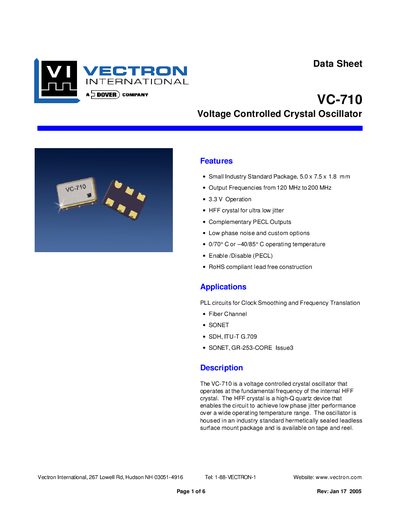

Key features include 3.3 V operation, enable/disable control, RoHS‑compliant lead‑free construction, and a wide operating temperature range (0 °C to 70 °C or –40 °C to 85 °C). The datasheet also lists electrical performance, reliability test standards, and ordering information.
| Package size | 5.0 × 7.5 × 1.8 mm |
|---|---|
| Operating temperature | 0 °C to 70 °C or –40 °C to 85 °C |
| Jitter (12 kHz–20 MHz BW) | 0.3 ps rms |
| Phase noise @10 Hz offset | -64 dBc/Hz |
The VC-710 can operate from 0 °C to 70 °C, or from –40 °C to 85 °C depending on the ordering option.
