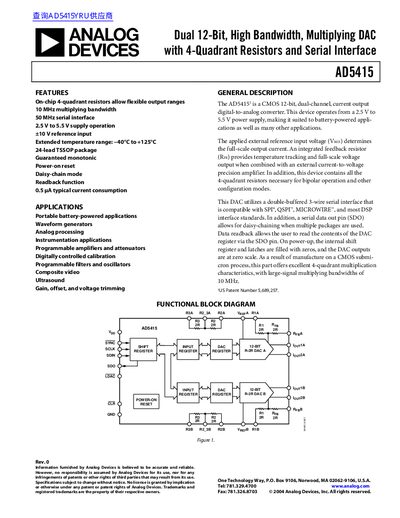

The AD5415 is a CMOS 12-bit, dual-channel, current output digital-to-analog converter. It features 4-quadrant resistors for flexible output range configuration. The AD5415 has a 10 MHz multiplying bandwidth, a 50 MHz serial interface, a 2.5 V to 5.5 V supply operation range, a ±10 V reference input, and operates over an extended temperature range of −40°C to +125°C. It is packaged in a 24-lead TSSOP and features guaranteed monotonicity, power-on reset, daisy-chain mode, and a readback function.
The AD5415 is a dual-channel, current output digital-to-analog converter (DAC) manufactured by Analog Devices. It features an integrated feedback resistor for temperature tracking and includes all necessary 4-quadrant resistors for bipolar operation. The device operates from a 2.5 V to 5.5 V power supply.
| Resolution | 12 Bits |
|---|---|
| Multiplying Bandwidth | 10 MHz |
| Power Supply Range | 2.5 V to 5.5 V |
| Operating Temperature Range | -40°C to +125°C |
The maximum clock frequency is 50 MHz.
The output leakage current is typically +1 nA when data is 0x0000.
