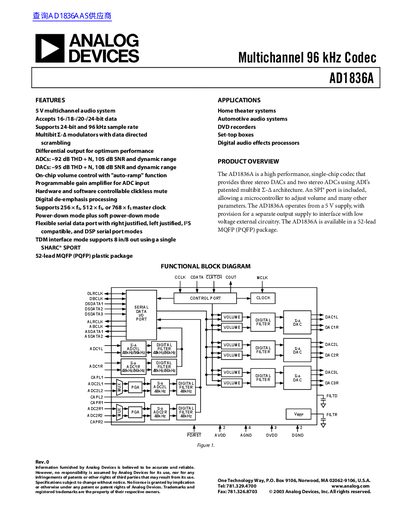

The AD1836A is a high performance single-chip codec that provides three stereo DACs and two stereo ADCs using ADI’s patented multibit Σ-∆ architecture.
The AD1836A is a single-chip audio codec designed for home theater systems, automotive audio, DVD recorders, set-top boxes, and digital audio effects processors. It utilizes Analog Devices' patented multibit Z-A architecture to provide three stereo DACs and two stereo ADCs.
| Supply Voltages (AVDD, DVDD) | 5V |
|---|---|
| Master Clock Frequency | 12.288 MHz (48 kHz fs, 256 x fs Mode) |
| ADC Resolution | 24 Bits |
| Dynamic Range (No Filter, RMS) | 97 to 105 dB |
| Total Harmonic Distortion + Noise (-1 dBFS) | -92 to -83 dB |
| Full-Scale Input Voltage (Differential) | 2.18 V rms (6.16 V pp) |
| Gain Error | -5.0 to +5.0 % |
The device supports a 96 kHz sample rate.
It is available in a 52-lead MQFP (PQFP) plastic package.
It is used in home theater systems, automotive audio systems, DVD recorders, and set-top boxes.
