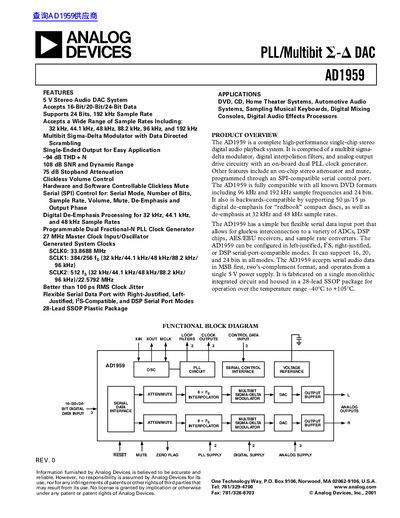

ANALOG DEVICES PLL/Multibit AD1959 handbook

AD1959 is a 5V stereo audio DAC system that supports 16-bit/20-bit/24-bit data and a wide range of sample rates including 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, and 192 kHz. It features a multibit Sigma-Delta modulator with data directed scrambling, single-ended output, -94 dB THD + N, 108 dB SNR and dynamic range, 75 dB stopband attenuation, clickless volume control, and hardware and software controllable mute.

Brand: Analog Devices
File format: PDF
Published: 08 June, 2012
Updated: 28 September, 2023
MD5 checksum: 0CBAF17AD7822C0E10057A555AB115D6
PDF: ANALOG DEVICES PLL/Multibit AD1959 handbook PDF
